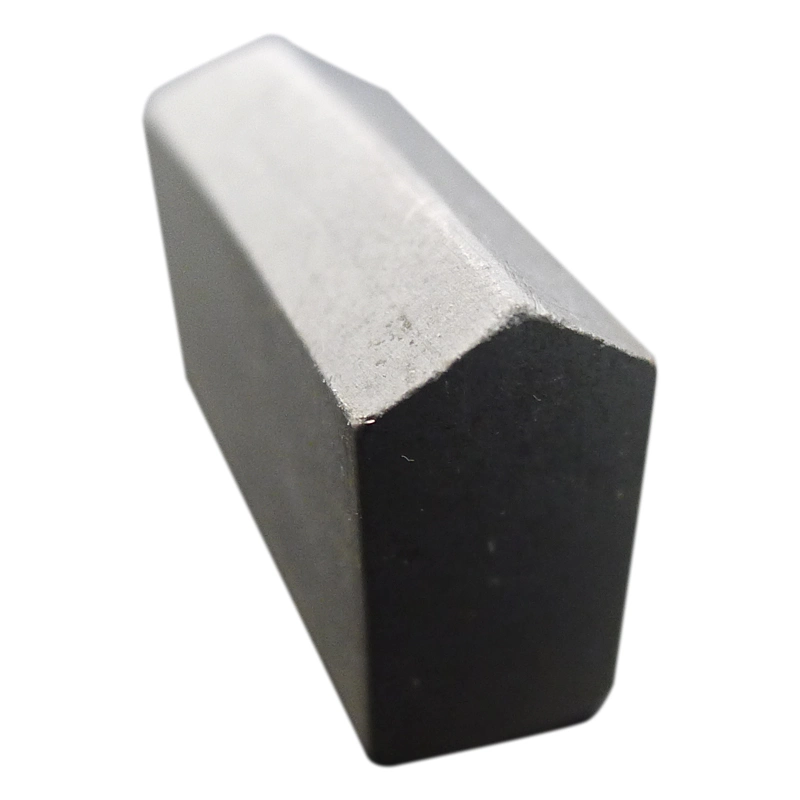

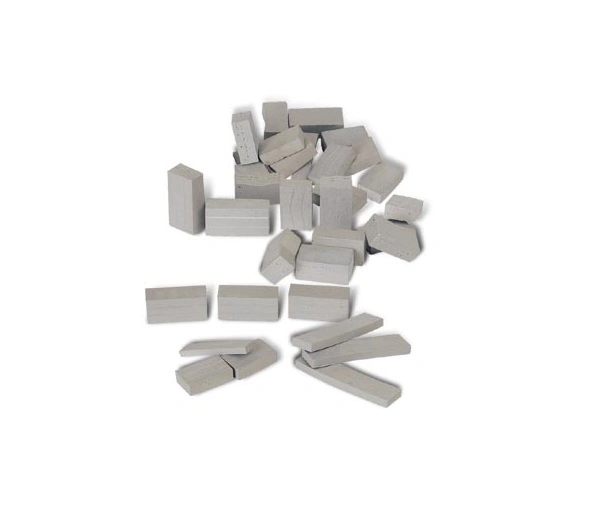

Diamond Segments for diamond tools (JL-DS)
Material:Diamond, alloy powder;imported cobalt powder and nickel powder, and high-quality diamond single crystals.
Manufacturing Arts:Sinter;
Quality Available:High, Medium, Economic
Welding Method:High-Frequency,Silver Brazed, Oxygen Fired Brazed;
Usage: wet Stone Cutting,easy and smooth cutting with Long life and stable performance
Application:Granite; Marble; Sandstone; Limestone.
Machine: Bridge saw, stone saw, multi-saw
Steel Core Thickness(Mm):2.2mm-10.0mm
Through the validation tested scientific formula.
Strict product quality inspection processes.
Support: OEM.
Material:Diamond, alloy powder;imported cobalt powder and nickel powder, and high-quality diamond single crystals.
Manufacturing Arts:Sinter;
Quality Available:High, Medium, Economic
Welding Method:High-Frequency,Silver Brazed, Oxygen Fired Brazed;
Usage: wet Stone Cutting,easy and smooth cutting with Long life and stable performance
Application:Granite; Marble; Sandstone; Limestone.
Machine: Bridge saw, stone saw, multi-saw
Steel Core Thickness(Mm):2.2mm-10.0mm
Through the validation tested scientific formula.
Strict product quality inspection processes.
Support: OEM.
Diameter (mm) | Specification LxWxH (mm) | Segment Number | Cutting depth (m2/day) | Feed speed (m/min) | Cutting speed(m2/h) | Output(m2/disc) |
| 200 | 40x3.2x8/10 | 14 | 20 | 3~5 | 1~3 | 12~15 |
| 250 | 40x3.2x8/10 | 18 | 20 | 3~5 | 1~3 | 14~17 |
| 300 | 40x3.2x10/12 | 21 | 20 | 3~5 | 1~3 | 16~20 |
| 350 | 40x3.2x10/12 | 24 | 20 | 3~5 | 1~3 | 18~23 |
| 400 | 40x3.4x10/12 | 28 | 20 | 3~5 | 1~3 | 20~25 |
| 450 | 40x3.6x10/12 | 32 | 20~50 | 2~4 | 1~3 | 22~27 |
| 500 | 40x4x10/12 | 36 | 20~50 | 2~4 | 1~3 | 35~47 |
| 550 | 40x4.6x12 | 40 | 20~50 | 2~4 | 1~3 | 40~52 |
| 600 | 40x4.6x10/12 | 42 | 20~50 | 2~4 | 1~3 | 43~57 |
| 700 | 40x5x10/12 | 46 | 20~50 | 2~4 | 1~3 | 65~85 |
| 750 | 40x5.5x10/12 | 48 | 20~50 | 2~4 | 1~3 | 77~97 |
| 800 | 40x5.5x10/12 | 50 | 20~50 | 2~4 | 1~3 | 85~105 |
| 850 | 40x6.0x10/12 | 54 | 20~50 | 2~4 | 1~3 | 92~110 |
| 900 | 24x6.9/6.1x13 | 64 | 30~60 | 1.5~4 | 2~3 | 200~270 |
| 1000 | 24x6.9/6.1x13 | 70 | 30~60 | 1.5~4 | 2~3 | 220~300 |
| 1100 | 24x7.4/6.6x13 | 74 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1200 | 24x7.4/6.6x13 | 80 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1300 | 24x8.4/7.6x13 | 88 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1400 | 24x8.4/7.6x13 | 96 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1500 | 24x9.2/8.4x13 | 100 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1600 | 24x9.4/8.4x13 | 108 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1700 | 24x9.2/8.4x13 | 112 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1800 | 24x9.9/9.1x13 | 120 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 2000 | 24x11/10x15 | 128 | 30~60 | 2.5~5 | 2~3 | 560~650 |
| 2200 | 24x11/10x15 | 132 | 30~60 | 2.5~5 | 2~3 | 580~670 |
| 2500 | 24x12.5/11.5x20 | 140 | 30~60 | 2.5~5 | 2~3 | 850~950 |
| 2700 | 24x12.5/11.5x20 | 140 | 30~60 | 2.5~5 | 2~3 | 900~1000 |
| 3000 | 24x12.5/11.5x20 | 160 | 30~60 | 2.5~5 | 2~3 | 1100~1200 |
| 3500 | 24x12.5/11.5x20 | 180 | 30~60 | 2.5~5 | 2~3 | 1250~1350 |
