Product Description

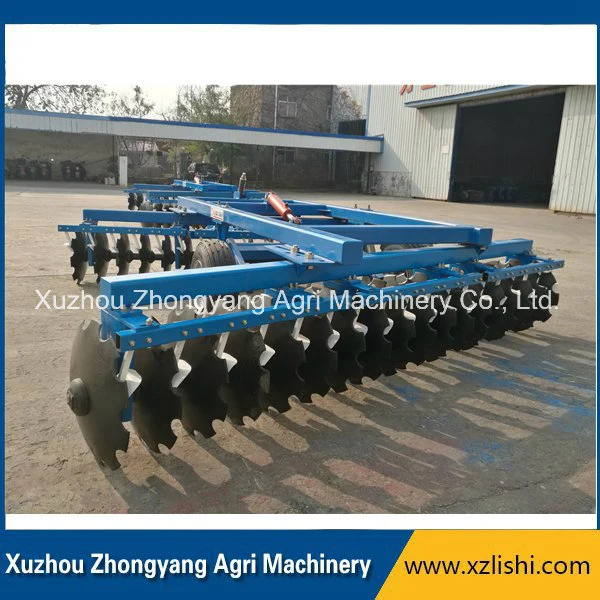

1BZ series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change directiong on the edge of fields.
Product characteristics
| Item | Unit | 1BZ-4.5 |
| Working width | mm | 4500 |
| Max. working depth | cm | 20 |
| No. of disc | 40 | |
| Dia. of disc | mm | 660 |
| weigth | kg | 2800 |
| Linkang | Traied | |
| Matched power | hp | 140-170 |
